22014

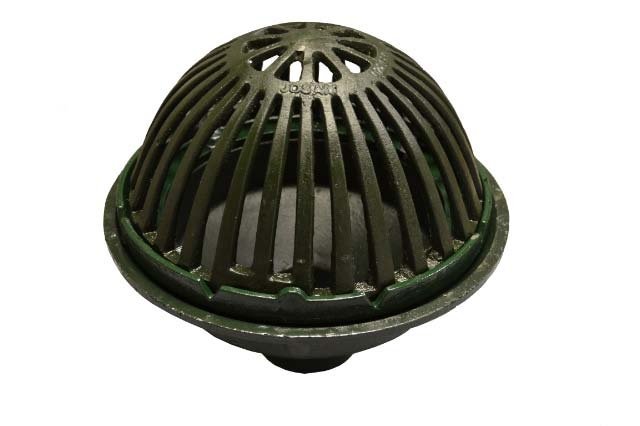

4" Josam 22010 Med Sump Drain

22010 Series Josam coated cast iron Roof Drain with medium Beehive Dome, non-puncturing clamp ring with integral gravel stop, medium sump with roof flange and No Hub bottom outlet.  Used on smaller roofs, gutters or valleys of any construction. Small diameter pan is particularly adaptable to gutters and valleys where limited space is available.  WEJLOC® compression flashing clamp holds the membrane or flashing to the drain body. Small beehive dome provides ample drainage for small roof decks, gutters and valleys, and intercepts debris.

Email This Post Email This Post

Specifications

Item #:

157724

Item Desc:

4" Josam 22010 Med Sump Drain

Item Desc 2:

w/10" Cast Iron Dome

Weight:

30.000

Price Um:

EA

Units/Pk:

1

Application:

Medium Area

Body Size:

12"

Bolt Pattern:

4.0

Bolt-to-Bolt Dist:

9"

Clamp Ring:

Yes

Color:

Green

CR ID:

8-1/4"

CR OD:

11"

Installation:

New Installation

Manufacturer's P/N:

22014-Z

Manufacturer:

Josam

Material:

Cast Iron

Model:

22010

Outlet Type:

No Hub

Pipe/Outlet Size:

4"

Type:

Medium Sump Drain


Documents

22010-Spec-Sheet.pdf
