22100

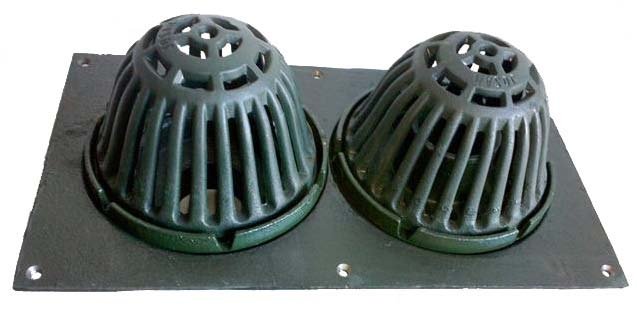

3" Josam 22100 COMBO Drain w/O

22100 Series coated cast iron combination roof drain and overflow drain with cast iron dome, two Wejloc non-puncturing clamp rings with integral gravel stops, integral cast iron standpipe in cast iron deck flange and dual no-hub bottom outlets.

Email This Post Email This Post

Specifications

Item #:

157743

Item Desc:

3" Josam 22100 COMBO Drain w/O

Item Desc 2:

w/8" Cast Iron Dome on OF

Weight:

37.000

Price Um:

EA

Units/Pk:

1

Application:

Overflow

Body Size:

20-1/4" x 11-3/8"

Bolt Pattern:

3.0

Bolt-to-Bolt Dist:

5-1/4"

Clamp Ring:

Yes

Color:

Green

CR ID:

6"

CR OD:

8-1/2"

Installation:

New Installation

Manufacturer's P/N:

22103-28

Manufacturer:

Josam

Material:

Cast Iron

Model:

22100

Outlet Type:

No Hub

Pipe/Outlet Size:

3"

Type:

Combo/Overflow Drain


Documents

22100-Spec-Sheet.pdf
